All Steel 122 Tonne Highway Cattle Grid

Deer Grid Option – Yes
Drop-in Design – Yes available on request

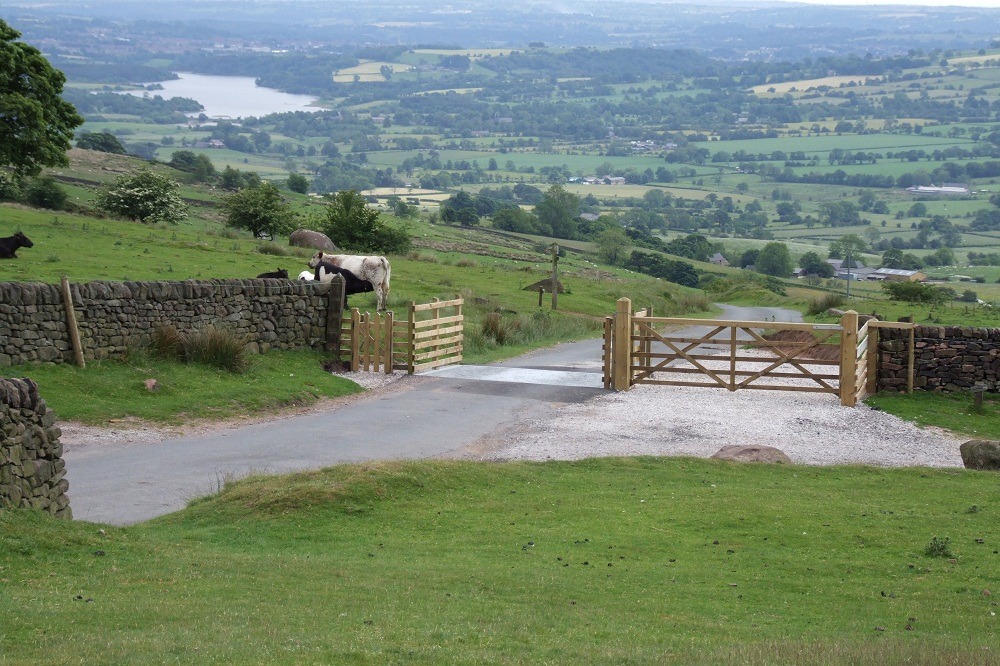

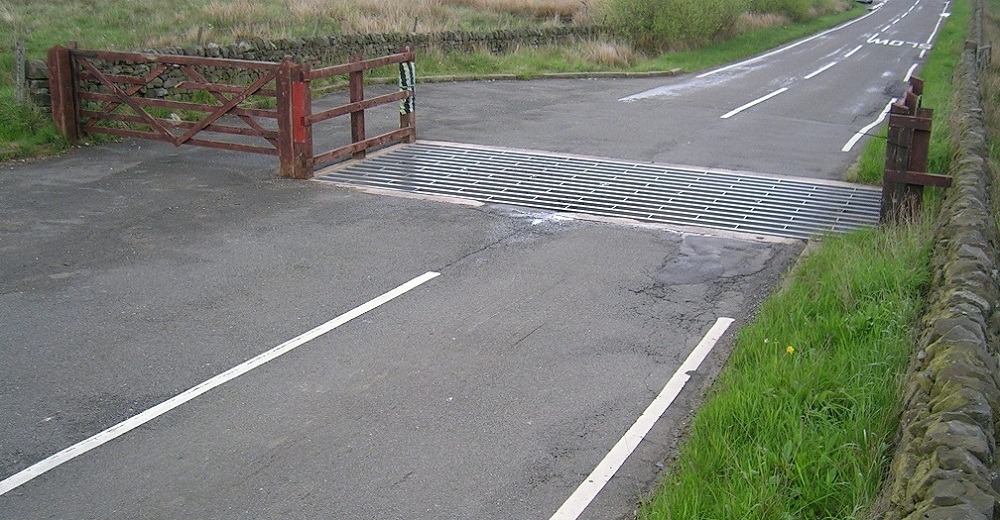

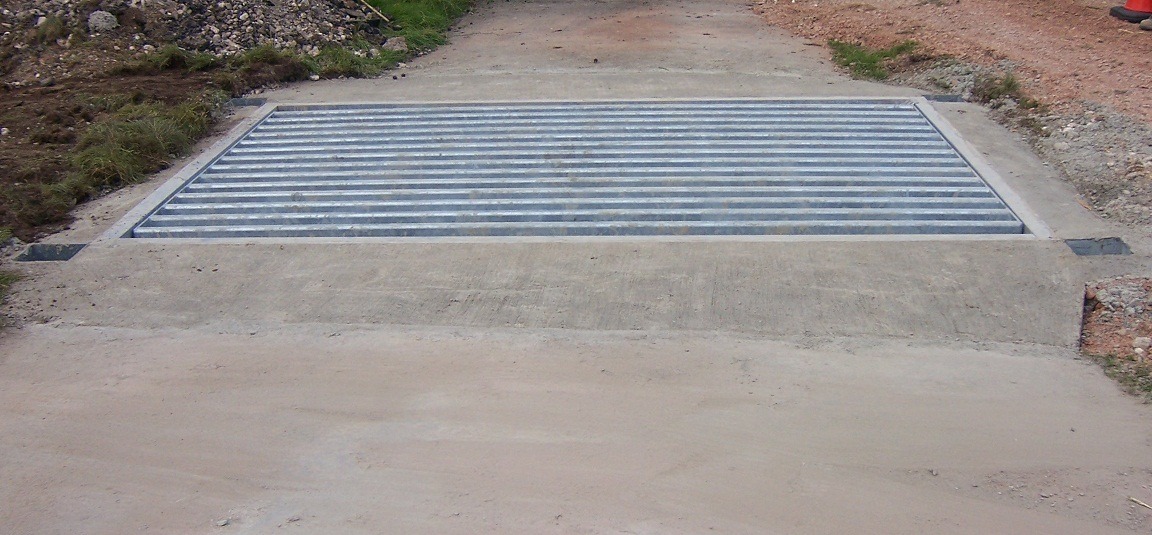

highway cattle grid

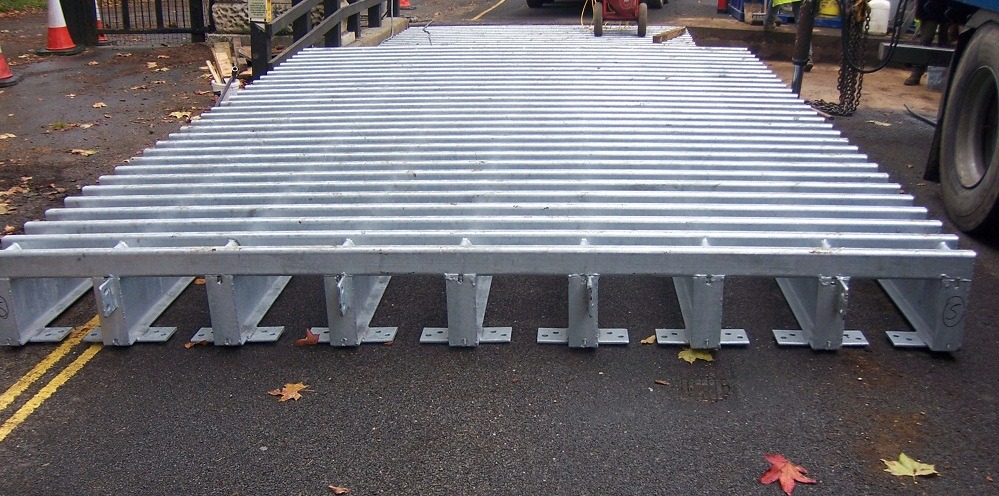

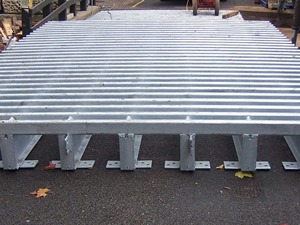

The all steel Highway Cattle Grid is an all-steel design with grid and kerb frames manufactured in two halves to facilitate installation and maintenance. The spacing between the grid support beams has been reduced to a minimum for optimal load bearing capability. The grid is bolted to the kerb frame which includes base anchor points, reinforcing bars and drainage ducts.

All steelwork is galvanised to BS EN ISO 1461 and requires practically no maintenance.

The design is hedgehog friendly and allows escape away from the roadway.

The grid can be manufactured in any size to suit customer requirements.

As standard a cattle grid is 2.6m (8ft 6″) long and a deer grid is 4m (13ft) long.

Across the road width is your choice.

The Highway grid is a rubust, reliable and cost effective solution and is ideal for public highway use.

The design fully conforms to British Standard, BS4008:2006 & BD37/01 and has a 300kN/m HA load rating and 30 Units of HB loading. Axle loading 16 tonnes.
