<p> <b>Stock-Stop Cattle Grids</b></p>
</td>
</tr>
<tr>
<td colspan="3">
<p>We manufacture a range of quick fit cattle grids to suit a variety of applications including agricultural/forestry designs, residential grids and robust, reliable highway grids.</p>

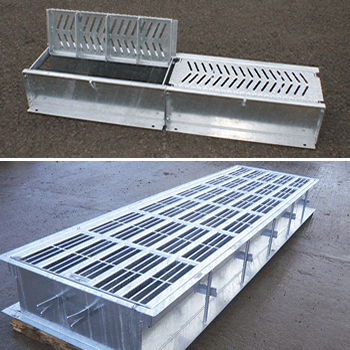

<p>We also manufacture quick fit <span class="harvey">DRAINAGE GRIDS</span> specially designed to keep run-off from farm and forestry tracks away from public highways. These are constructed like short cattle grids and are recommended for applications where stock control is not an issue. Please visit <a href="http://www.drainagegrids.co.uk" target="_top">www.drainagegrids.co.uk</a> for more information.</p>
<p> </p>
</td>
</tr>
<tr>
<td bgcolor="#9eb6dd" width="49%">
<p> <b>Trackway Grid</b></p>
</td>
<td rowspan="4" width="5"> </td>
<td bgcolor="#9eb6dd">
<p> <b>Driveway Grid</b></p>
</td>
</tr>
<tr>
<td width="49%" valign="top">
<p> </p>

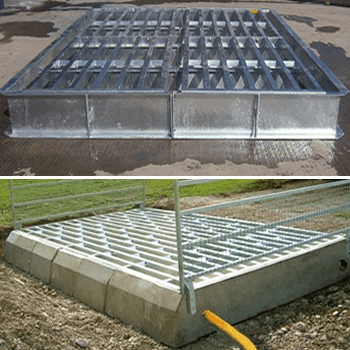

<p><img src="images/photo1.jpg" alt="Stock-Stop quick fit cattle grid; track-way model" border="0" align="left" hspace="5" width="240" height="183">The quick fit <span class="harvey">STOCK-STOP</span> <span class="harvey">TRACKWAY CATTLE GRID</span> features special reinforced concrete base sections which allow installation in a matter of hours rather than days. No poured concrete, shuttering or block work is required so the design is ideal for busy trackways which cannot be out of use for long. The Trackway Grid provides an especially useful solution in locations with an inclined trackway.</p>
<p><img src="images/photo2.jpg" border="0" align="right" alt="Trackway cattle-grid; modular concrete base" hspace="5" width="140" height="108">The Trackway Grid is competitively priced and is ideal for agricultural, forestry and estate use. The design conforms to British Standard, BS4008 & BD37/88 and is suitable for the heaviest traffic.</p>
<p> All steelwork is galvanised and requires practically no maintenance. Various widths are available and optional side fencing can be supplied.<br clear="all">
</p>
<p>Visit the <a href="trackwaydemo.html">demo</a> page to see how quick and easy installation really is.</p>
<p> </p>
</td>
<td valign="top">
<p> </p>
<img src="images/photo3.jpg" alt="Stock-Stop quick fit cattle-grid; drive-way model" border="0" align="left" hspace="5" height="183" width="240">The quick fit <span class="harvey">STOCK-STOP DRIVEWAY CATTLE-GRID</span> is a lightweight all-steel modular design that can be installed in a few hours without earthmoving and/or handling equipment. The grid complete with side fences and hedgehog ramp is palletised for lightweight, low cost delivery.
<p><img src="images/photo4.jpg" border="0" align="right" alt="Driveway cattle-grid; palletised delivery" hspace="5" width="140" height="103">The Driveway Grid is competitively priced and is ideal for residential use. The design conforms to British Standard, BS4008 & BD37/88 and is suitable for normal road traffic. All steelwork is galvanised and requires practically no maintenance.</p>
<p>The grid is a standard size although special sizes and heavy duty versions for abnormal loads can be made to order.<br clear="all">
</p>
<p>Visit the <a href="drivewaydemo.html">demo</a> page to see how quick and easy installation really is.</p>
<p> </p>
</td>
</tr>
<tr>
<td bgcolor="#9eb6dd" width="49%">
<p> <b>Highway Grid</b></p>
</td>
<td bgcolor="#9eb6dd">
<p> <b>Special Grids</b></p>
</td>
</tr>
<tr>
<td width="49%">
<p> </p>
<p><img src="images/photo5.jpg" alt="Stock-Stop quick fit cattlegrid; highway model" border="0" align="left" hspace="5" height="182" width="240">The <span class="harvey">STOCK-STOP</span> <span class="harvey">HIGHWAY CATTLEGRID</span> is an all-steel design with grid and kerb frames manufactured in two halves to facilitate installation and maintenance. The spacing between the grid support beams has been reduced to a minimum for optimal load bearing capability. The grid is bolted to the kerb frame which includes base anchor points, reinforcing bars and drainage ducts.</p>
<p><img src="images/photo6.jpg" border="0" align="right" alt="Highway cattlegrid; modular base" hspace="5" width="220" height="167">All steelwork is galvanised to BS EN ISO 1461 and requires practically no maintenance.</p>
<p>The design is hedgehog friendly and allows escape away from the roadway.</p>
<p>The Highway grid is a rubust, reliable and cost effective solution and is ideal for highway use. The design conforms to British Standard, BS4008 & BD37/88 and has a 300 kN/m HA load rating and 30 Units of HB loading.<br clear="all">
</p>
<p>Visit the <a href="highwaytechnical.html">technical info</a> page for full specifications. </p>
</td>
<td>
<p> </p>
<img src="images/taperedgrid.jpg" alt="Special cattle grids, tapered grid" border="0" align="left" hspace="5" height="276" width="300">We manufacture a wide variety of special grids to meet specific requirements. Examples include tapered grids, curved grids and grids with tubular bars.
<p>We can also manufacture special highway grids with anti-slip bars for use in problem areas: Close to bends or junctions, inclines, or roads with adverse camber; situations where vehicles are prone to skidding. The anti-slip bars also minimise the "rolling road" effect, where drivers stopping on the grid have difficulty moving off.<br clear="all">
</p>
<p>Please <a href="contact.asp">contact us</a> for prices and <a href="order.html">ordering</a>. </p>
<p></p>
</td>
</tr>
<tr>
<td colspan="3">
<p> </p>
<p>UK Patent Application No. 9614775.</p>
<p>The <span class="harvey">WWW.CATTLEGRIDS.COM</span> site includes a <a href="technical.html">technical info</a> section where you can download our data-sheets. You will also find <a href="order.html">ordering</a> information and a <a href="contact.asp">contact</a> details page.</p>
